Jenesis

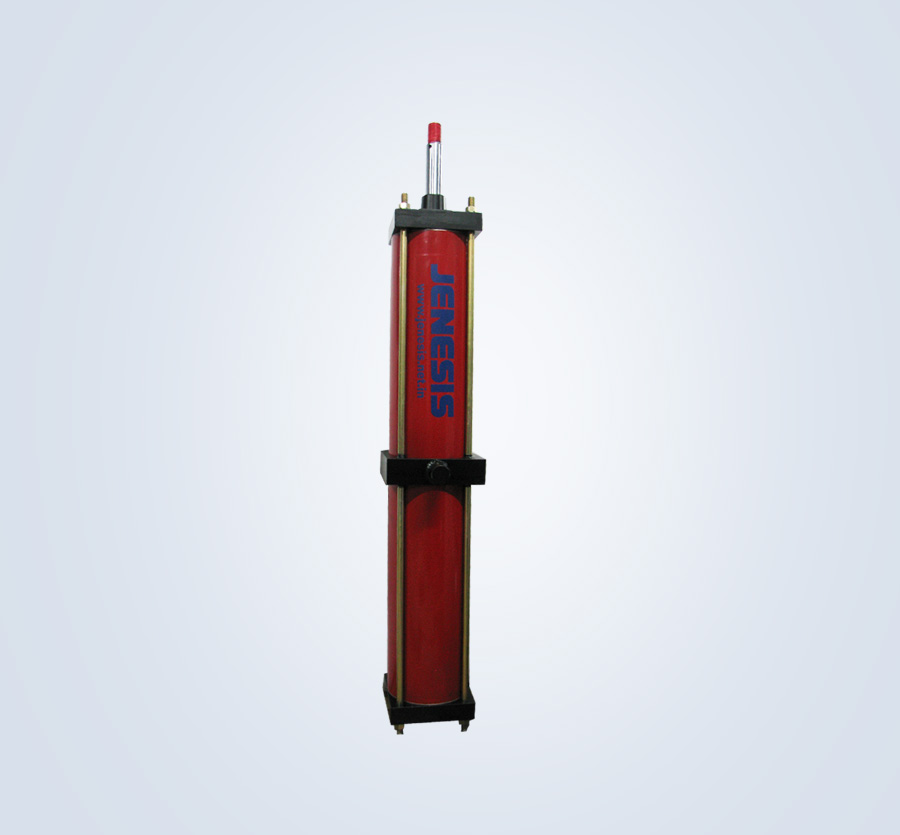

These Cylinders are created to Cartier to the needs of existing Nucon Model Cylinder customers. These cylinders are used in a variety of application in heavy duty Mechanical sections of Chemical, Paper, Power, Rubber Plants. They are to the actual specification of Nucon standard Cylinders.

Technical Specification:

Bore Size : 4,5,6,8 Inch
Model Type : ZRM/ ZTM
Stroke : up to 1000mm
End Covers : Mild Steel/ Aluminium
Barrel : Al tube/ Seamless Tube.
Seals : NBR ,Viton
Piston : Mild Steel/Aluminium
Piston Rod : EN Series, MS, SS
Pressure : 1-10 Bar
Medium : Dry Air
Mounting : Standard and Custom mounting are available
Application : All Mechanical Sections of the any Plant especially foundry units.

Nucon Replacement Cylinders
