Air Shifter is used in Power Take offs to engage the gears in their respective positions. This work with compressed air which is already in the available in the vehicle. The control signal is given by the driver. It is also called gear engagement cylinders. These cylinders are supplied to Major OEM's of Power Take offs.

Technical Specification:

Bore Size : 32 mm
Stroke : up to 100mm
End Covers : Anodized Aluminium
Barrel : Al Round Tube, "Mickey Mouse" Section
Seals : NBR, (Optional- Viton)
Piston : Anodized Aluminium
Piston Rod : EN Series & MS
Pressure : 1-10 Bar
Medium : Dry Air
Application : PTO Gear Boxes and any other pneumatic gear shifting application.

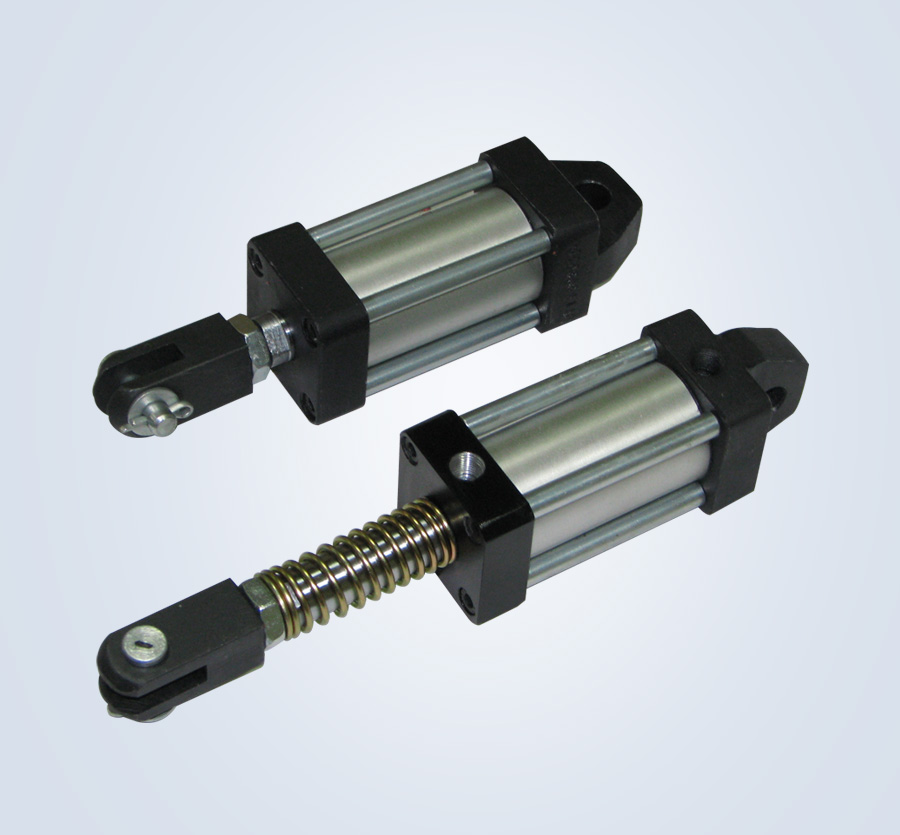

Air Shifters / PTO Gear Shift Cylinder - Inner/ Outer
