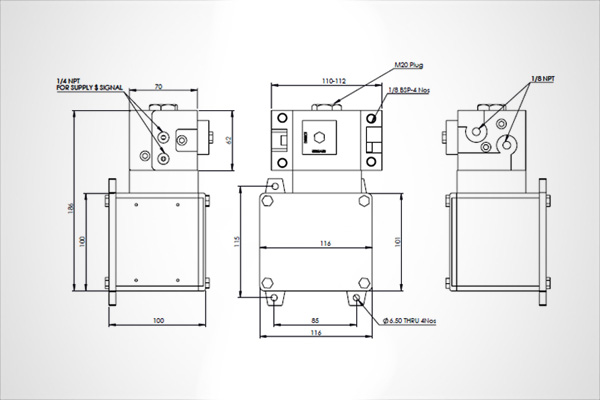

PL 02 is a Linear Positioner suitable to be fitted on to Linear Actuator with a stroke range above 75- 800mm. Linear Positioner is used in a pneumatic circuit to control the movement of the actuator. It actually Positions the Actuator at the exact location that we require.
Technical Specification:
Control signal : 0.2 - 1- 0 Bar
Sensitivity : 0.25 % of signal range
Air supply : Dry instrument air
Linearity : ± 1% of stroke (Direct Action)
Zero Adjustment : ± 10%
Range Adjustment : ± 10%
Connections : 1/8" BSP
