These cylinders are used in Knife Gate Valves. These cylinders come with Standard Mounting on the Cap Side of the Cylinder to be directly fit to the Knite gare Valve. Standard and Custom made mounting are also possible.

Technical Specification:

Bore Size : 32mm - 6inch
Stroke : up to 200mm
End Covers : Aluminium / Mild Steel
Barrel : Al Round Tube, Mild Steel
Seals : NBR, (Optional- Viton)
Piston : Aluminium, Mild Steel
Piston Rod : EN Series & MS
Pressure : 1-10 Bar
Medium : Dry Air
Application : Knife Gate Valves and Reverse Mount application

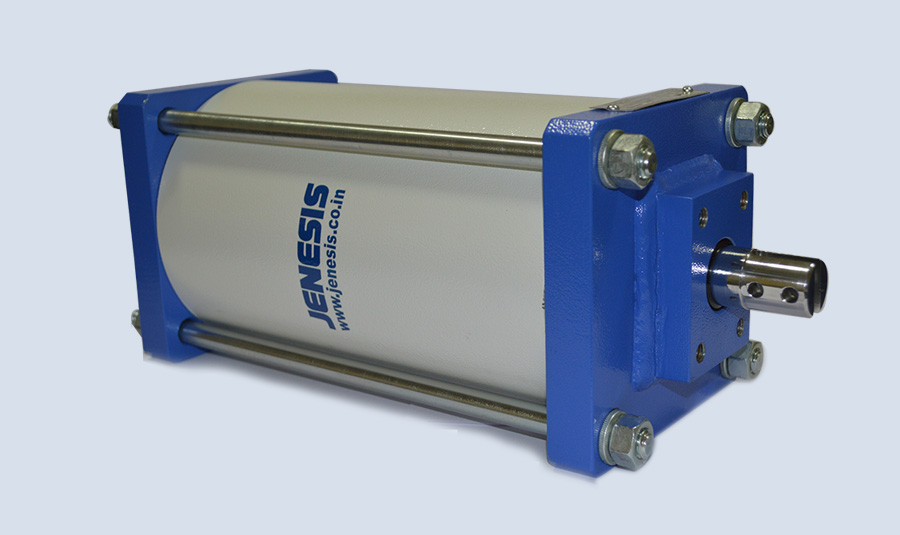

Knife Gate Cylinder
