Jenesis

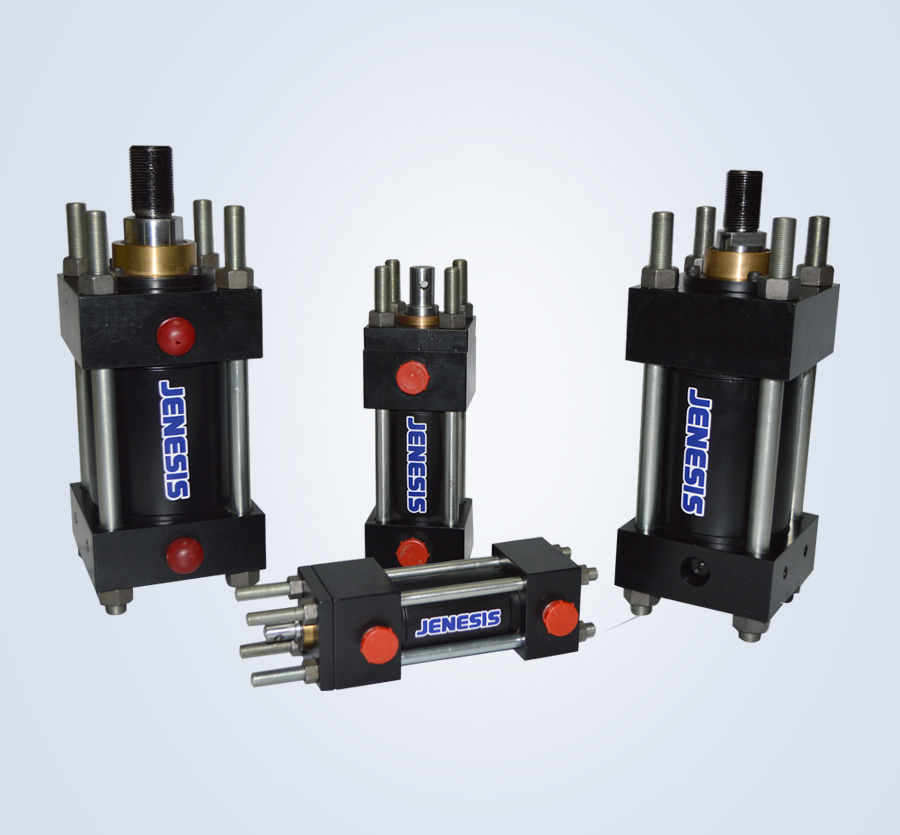

Heavy Duty Cylinders for Hydraulics in high pressure work conditions. The Stroke and Bore Size ranges up to 8" and can be used for a pressure range of up to 3000 PSI. With a well proven design this robust cylinder can be used for a wide variety of demanding application in hydraulics. A mixture of multiple mountings and custom stroke length has helped in creating a custom fit for our customers. These cylinders have a wide approval rating for its durability and robustness.

Technical Specification:

Size Rage : 1½" to 8" Bore
Stroke Range : 1"- 8" Stroke
Type : Double acting Tie Rod Type - Extended Tir Rod Model
Models : J51-B/R, J52- B/R, J53-B/R
Mounting : All types of mounting to suit your specific application
Material for Construction
     End Covers: Mild Steel
     Pipe : Seamless Tube
     Shaft : SS 304
Rod End Styles : External Thread, Internal Thread with across flats
Pressure Range : 3000Psi / 200 Bar

Application :

6", 8", 10", 12" & 14" Slanted Disc Check Valves. Also called as Damper/Shock Absorber Cylinders, Machine Tools, Hydraulic Installations.

JHV2 type - Extended Tie Rod
